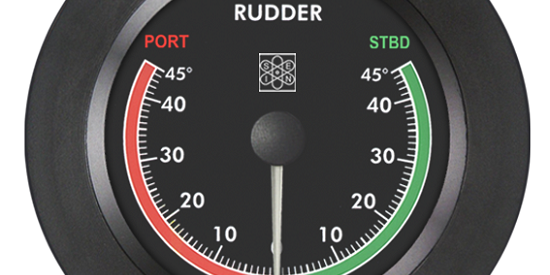

Rudder angle indicator Ø80mm – MED

Range

±45°

Dimensions

Ø80mm

Inputs

CAN Bus, 4-20mA, 0-1 KΩ

Power supply

12/24V

Backlighting

Red LEDs (dimmable)

Alarm lamp

Red LED

Dial color

Black

Master / Slave selection

Automatic

Calibration

Rear button activation

Function

Rudder angle

Reverse function

Rear button activation

Protection grade

IP67 on the front

Connectors

2 x 4 pins terminal block

Approved

MED
